Click Whirr

The project called back. And had some stuff to say

Software

I work with the proprietary weird 4pin Mini USB B, because, i'm not that skilled with micro-eletronics soldering

This is a fairly simple cord, simple as was USB A, with 4 ends pins.

So, software wise, i still use the MS bound software, i installed a mini computer with WinXP for this sole purpose only since i never been able to make the photo camera comunicate thru USB passthru in virtualization. I kinda left that where it is.

Again i might try to find a way out, considering my current skills, if the learning curve around that is no longer a curve but a vertical line, i might not trying further and stop.

case design

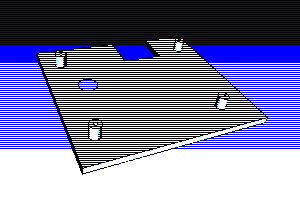

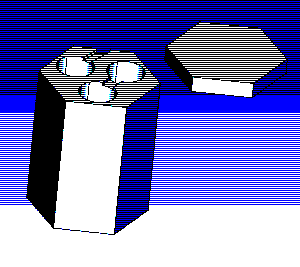

I tried to make some case design to make it less a mess of things.

This where i stopped working on it. I also tried to design something with FreeCAD and this is where i stopped myself.

Another word?

Sorry about the back log. this article might be updated in the future
